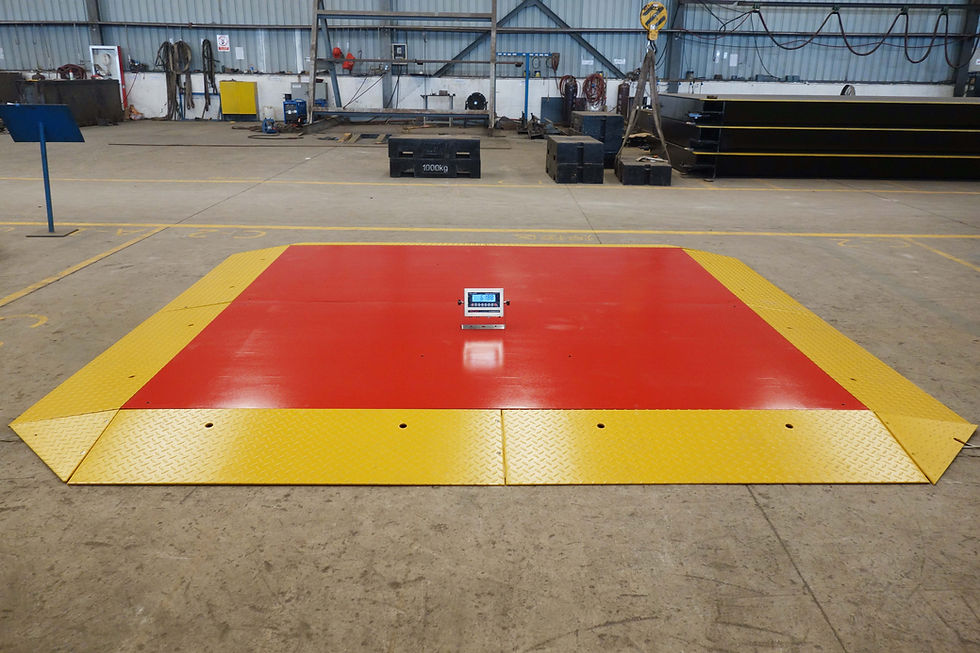

OP-960 Pancake Scale

OP-960 Pancake Scale

SKU: OP-960
FEATURES:
  • Twin module rugged steel deck construction
  • 1.25’ long wrap around ramps for easy access and eliminates the need for a scale pit
  • Ultra low 3” profile allows easy loading of heavy items
  • Complete scale and indicator package
  • Indoor or outdoor usage

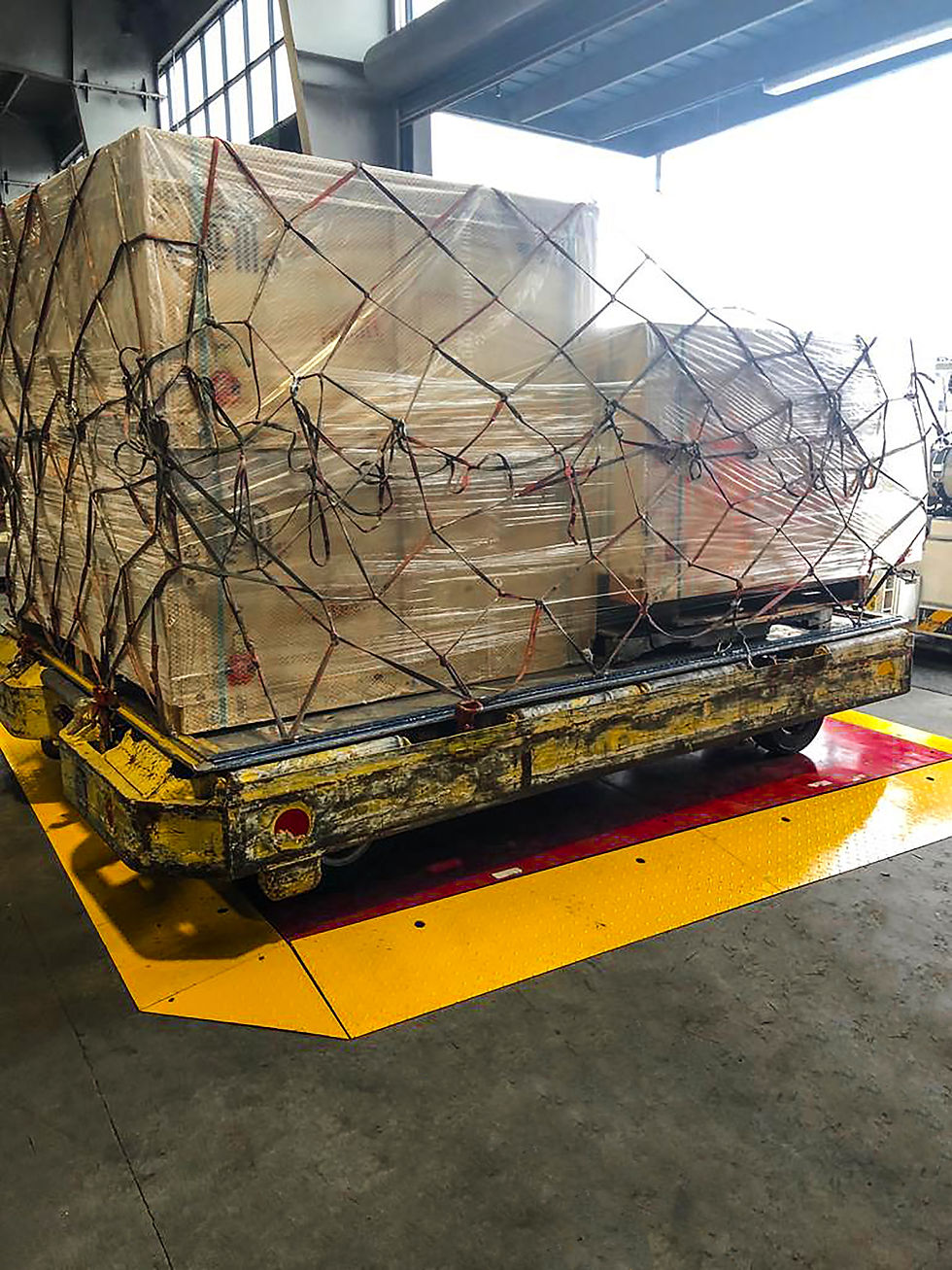

  • Perfect for cargo dolly weighing
  • Set up is simple and allows for easy relocation
  • Load cell capacity is 2X the scale capacity for a 200% overload protection
  • Four NTEP certified alloy steel load cells
  • 45’ heavy duty metal shielded cable
  • Factory pre-calibrated for quick setup
  • 40,000 lbs. capacity available
  • Overload Protection
  • 1 year warranty on parts

Click here for flyer

Specifications
  • Capacity: 20,000 lbs. x 2 lbs.
  • Platform Size: 10' x 10' x 3"
  • Ramp Size: 1.25' x 10'
​​​

  • Indicator Features

    • OP-900 NTEP indicator with LED or LCD display
    • 1" Tall backlit display
    • Optional Rechargeable battery (up to 100 hrs)
    • Metal casing (Stainless steel or washdown upgradeable)
    • AC adapter included
    • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
    • Gross/Tare/Pre-Set Tare/Zero
    • Multiple Hold functions
    • Count weighing
    • Accumulation weighing
    • Overload / Underload alarm
    • Splash proof  keyboard and display
    • Connects to a remote display and printer
    • NTEP approved for 5,000 divisions
    • Displays up to 50,000 graduations
    • Full Duplex RS-232 Serial Port

  • Optional Accessories

    • Scoreboard

    • Printer

    • Stand

    • Software

  • Specifications

    Material: Carbon Steel, powder coat finish

    Welding: Continuous

    Overload Protection: 200%

    Power: AC/DC, built-in rechargeable
    battery (100 hrs)

    Capacity: 20,000 lbs - 40,000 lbs

    Ramp Length: 1.25 ft (16 in)

    Cable Length: 45 ft

    Approval: NTEP pending

    Warranty: 2 years limited
